Aramid Yarn Fiber Optic Cable With High Tension Wire Double Jacket Aerial Adss 24 Core

Model Number : adss double jacket

Place of Origin : China

Brand Name : ODM/OEM

Packaging Details : 2KM/Wooden Drum

Supply Ability : 1000000 Meter/Meters per Week

MOQ : 2000 meters

Price : $0.30 - $1.80/meters

Certification : RoHS, CE

Payment Terms : T/T, Western Union

Type : Outdoor Fiber Optic Cable

Number of Conductors : ≥ 10

fiber count : 24 core

loose tube : 5 loose tube

fiber : G652D Single mode

Central strength : FRP

loose tube color : at your request

outer sheath material : HDPE

Inner sheath material : HDPE

Non-metallic strength : Aramid yarn

Cable weight : 95kg/km

Installation : Aerial

Color : Black

Contact Now

All Dielectric Aramid Yarn with high tension wire Double Jacket Aerial adss 24 core fiber optic cable

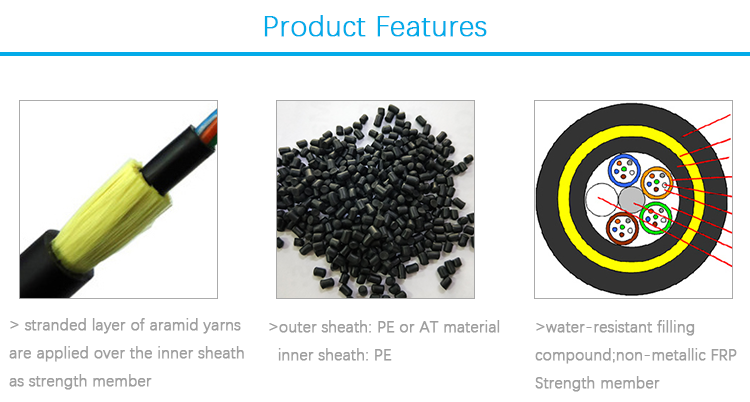

ADSS cable is loose tube stranded structure. The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. In the center of the cable core is a FRP strength member,The loose tube (and the filling rope) is twisted around the central reinforcement core to form a compact and round cable core, and the gap in the cable core is filled with a water blocking filler. The outer of the cable is a polyethylene (PE) inner sheath,then twisted high tensile strength aramid, normally use high-density polyethylene (HDPE) outer sheath or electric tracking (AT) outer sheath.


Cable Structure
Aramid Yarn Fiber Optic Cable With High Tension Wire Double Jacket Aerial Adss 24 Core
Aramid Yarn Fiber Optic Cable With High Tension Wire Double Jacket Aerial Adss 24 Core
Specification
Cable fiber count



/
2~30
32~60
62~72
Structure



/
1+5
1+5
1+6
Fiber style



/
G.652D


Central strength member


material
mm
FRP





Diameter (average)

1.5
1.5
2.1
Loose Tube


Material
mm
PBT





Diameter (average)

1.8
2.1
2.1



Thickness(average)

0.32
0.35
0.35



Max fiber/loose tube

6
12
12



Tubes color

Full color identification





Fiber excess length
%
0.7~0.8


Water resistance


Material
/
Cable jelly


Inner sehath


material
mm
MDPE





Inner sheath

0.9mm


Non-metallic strengthen components


Material
/
Aramid Yarn


Outer sheath


material
mm
MDPE





Outer sheath

1.8mm


Cable diameter(average)



mm
10.9
11.5
12.1
Cable weight (Approximate)



kg/km
95
110
120
Cable Sectional area



mm2
93.31
103.87
114.99
Attenuation coefficient(Max)
1310nm


dB/km
0.35



1550nm


0.21



Rated Tensile Strength(RTS)



kn
6


Max allowed tension( MAT)



kn
2.5


Annual average operating tension (EDS)



kn
3.2


Young's modulus



kn/mm2
7.8


Coefficient of thermal expansion



10-6/℃
9


Crush resistance

Long term

N/100mm
1100




Short term

2200



Permission Bent Radius

static

mm
15 of OD




dynamic

20 of OD



Temperature

When laying

℃
-20~+60




Storage and transportation

-40~+70





runing

-40~+70



Scope of application

Suitable for voltage level under 110kV, wind speed below 25m/s, icing 5mm





Cable Marks

Company Name ADSS-××B1-PE-100M DL/T 788-2001 ××××M Year
(Or at customer’s request)
