Flangeless SC Simplex Single Mode Adapter For CATV Telecommunication

Name: Flangeless SC Simplex Single Mode Adapter For CATV Telecommunication
Brand: ODM/OEM
Price: 0.10 USD

Buy cheap Flangeless SC Simplex Single Mode Adapter For CATV Telecommunication product

Model Number : fiber optic adapter

Place of Origin : China

Brand Name : ODM/OEM

Packaging Details : by carton box

MOQ : 100 pieces

Price : $0.10/pieces 100-999 pieces

Certification : RoHS, CE

Payment Terms : T/T, Western Union

Type : Enterprise Wireless Access Point

Product name : Fiber optic adapter

No of fiber : 1

Connector Type : SC APC

material : PC

Durability Time : >1000

Insertion loss : 0.2db

Warranty : 1 year

Working Condition : -40°C to +75°C

Working Wavelength : 1200~1600nm

Package : 50 pc per box

Contact Now

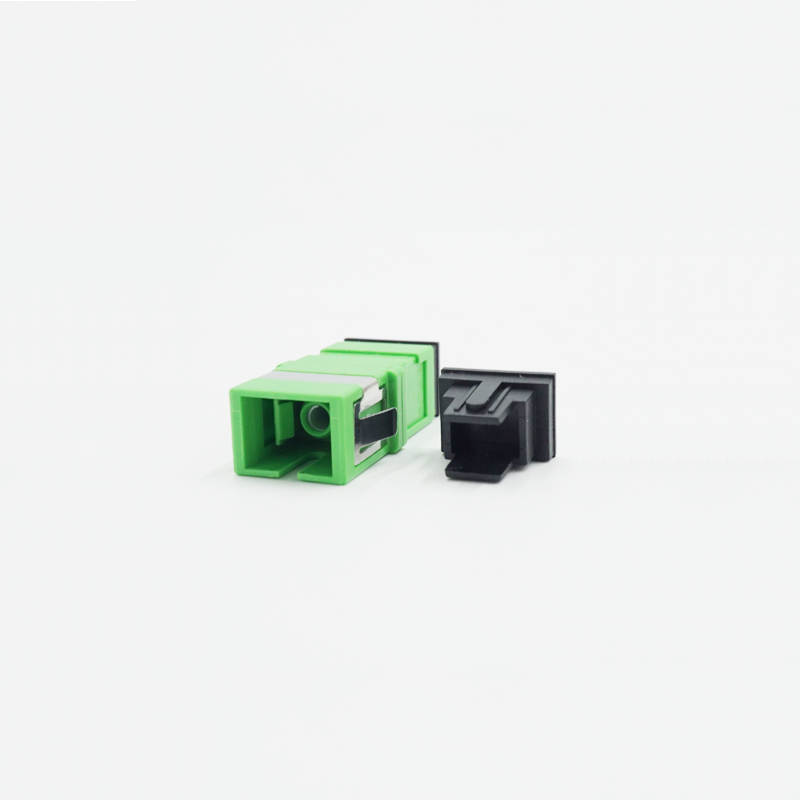

SC APC single mode simplex adapters fiber optic connector flangeless

Product Description

Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or
fiber optic connectors between two fiber optic lines.

By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility.

Flangeless SC Simplex Single Mode Adapter For CATV Telecommunication

Feature

* Low insertion loss
* High return loss
* Easy installation
* Various specifications
* Good interchangeability and duplication
* RoHs Compliance

Application

* Fiber optic transmission system
* Fiber optic sensing
* Fiber optic distribution frame
* Testing/Measurement Instruments
* LAN
* CATV
* Telecommunication networks

Specification

Sleeve Material:	Ceramic or beryllium bronze
Housing Material:	Synthetic resin or alloy, with high precisemechanical dimensions, good compatibility
Working Wavelength:	1200~1600nm
Working Condition:	-40°C to +75°C
Durability:	less than 500 times repeated insert and pull out , insertion loss change≤0.20dB
Repeatability:	No more than 0.2dB ;
Standard:	NTT/Telcordia/IEC/TIA/EIA.
Mode:	SM/APC Green SM/PC Blue MM/PC Beige MM/PC Light Green
